MULTI-COLOR LASER SHOW DISPLAY SYSTEMS


LEISURE VENUES / CLUBS

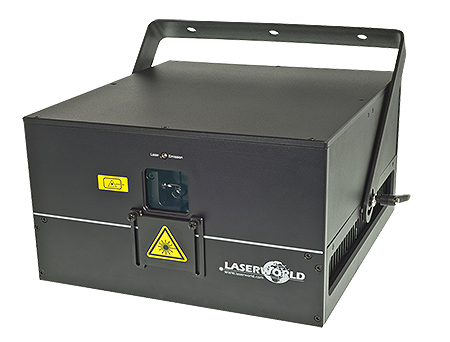

The MICRO-COLOR white light laser projection system addresses the need for an extremely small, portable, white light laser source for entertainment applications
MICRO-COLOR the most versatile white light laser system available.



CLUB SYSTEM SPECIFICATION

DIODE 5 -10 Watt White RGB Laser.
Dimensions: L= 345mm x H=312mm x D=200mm
Functions I PC Control
Full temperature control with over temperature switch..


ilp LASER SOFTWARE

Laser Software Options:
See Pricelist for Further Details
ILP Lasermedia Latest Edition

Multimedia PC or Laptop Operating System

Precision "Laserworld PL " Projector enclosure

Weight 18kg

Standard Scanner max 40 kpps@4 deg
Electronics, Cabling

CLUB Configuration
Inclusive of 12 month Warranty Parts & Labor

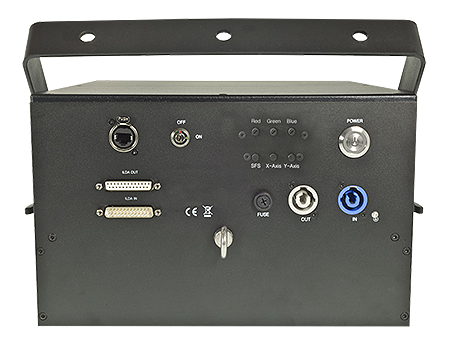

REAR PANEL CLUB 5-10



SOFTWARE

Laser Software Options:
See Pricelist for Further Details

INSTALLATION

See Pricelist for Further Details

LASER SPECIFICATIONS

RGB 5 Watt
Laser output mw RED GREEN BLUE 1500 1500 3000
RGB 10 Watt
Laser output mw RED GREEN BLUE 2500 3000 5000
Beam ca. 5mm
Divergence mrad 1.3<
Operating temp 10-35c
Power Consumption: 5 120W
Power Consumption: 10 165W
Operating Lifetime hrs 5000
