LASER DISPLAY APPLICATIONS

The GREEN laser for all occasions


DISCOTHEQUE - CONCERT - ADVERTISING - SPECIAL EVENTS

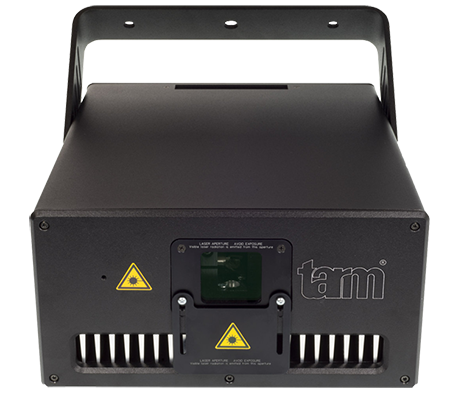

The MICRO - MAX single color
DIODE Green laser projection system.

When you want power and reliability in a small package, this systems delivers every time


SYSTEM SPECIFICATION

DIODE 5.0 Watt- 10 Watt GREEN Laser.
Dimensions: L= 215mm x H=150mm x D=133mm
Weight 3.9 kg
Functions I PC Control | Auto Mode | Music Mode | DMX
Protection features | Single Beam Protection
Full temperature control with over temperature switch..

ilp LASER SOFTWARE

Laser Software Options:
See Pricelist for Further Details
ILP Lasermedia Latest Edition

Precision " TARM" Projector enclosure
40 kpps@4° Scanners
Electronics and Cabling

CLUB Configuration
Inclusive of 12 month Warranty Parts & Labor











SOFTWARE

Laser Software Options:
See Pricelist for Further Details

INSTALLATION

Water Proofing
Electric Gauze Screens
Water Screens

LASER SPECIFICATIONS 4w

GREEN 8.0 Watt
Laser output mw GREEN 8.0
Wavelength nm 638
Beam Diameter mm <5.5mm
Divergence mrad 1.0<
Ext Modulation ( Analog) Hz 20000
Operating temp 10-40
Warm up time sec< 20
Operating Lifetime hrs 10000

Operating Voltage 94-240VAC

Scanner 6210 HP

Safety Standards CE/CDRH
Input Standards ILDA
