ADVERTISING / LEISURE VENUES / CLUBS / BARS

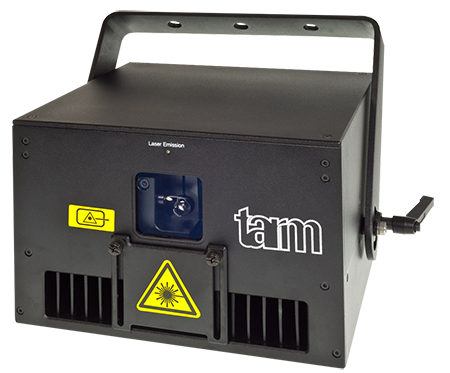

The METRO white light laser projection system addresses the need for an extremely small, portable, white light laser source for entertainment applications
MICRO-COLOR the most versatile white light laser system available.
DIODE 2- 4 -7 Watt White RGB Laser.
Dimensions:
2 L= 220mm x H=220mm x D=150mm
Dimensions:
4-7 L= 320mm x H=260mm x D=140mm
Functions I PC Control | FB4 | DMX
Full temperature control with over temperature switch..
Laser Software Options:
See Pricelist for Further Details
ILP Lasermedia Latest Edition
Multimedia PC or Laptop Operating System
Precision "Tarm " Projector enclosure
Standard Scanner max 45 kpps@8 deg
Electronics, Cabling, Remote
Pro Configuration
Inclusive of 12 month Warranty Parts & Labor

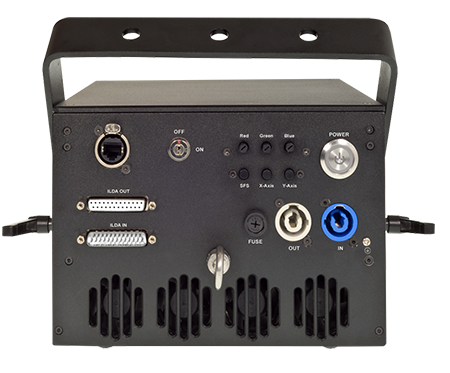

REAR PANEL Pro 2

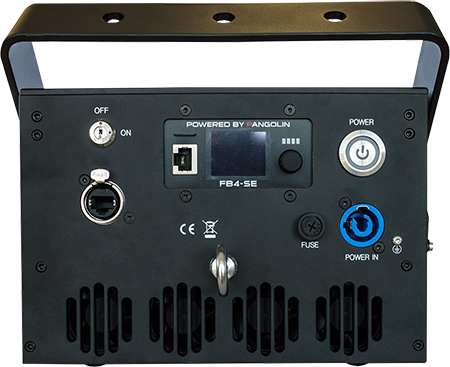

REAR PANEL Pro 4 - w/ FB4 Integrated
See Pricelist for Further Details
CT-6210H incl. Rti RayScan driver:
60kpps@8° ILDA, max. 68° (@35kpps).
RGB 2 Watt
Laser output mw RED GREEN BLUE 750 700 1500
RGB 4 Watt
Laser output mw RED GREEN BLUE 1200 900 1900RGB
7 Watt
Laser output mw RED GREEN BLUE 2300 1800 3600
Beam ca. 3.5mm
Divergence mrad 0.9<
Operating temp 10-35c
Power Consumption: 2 100W
Power Consumption: 4 320W
Power Consumption: 7 320W
Operating Lifetime hrs 5000
REAR PANEL Pro 4 - 7
