MULTI-COLOR LASER DISPLAY APPLICATIONS

International Laser Productions MAXM system provides full color balanced output for
SKYSHOWS - THEME PARK / BILLBOARD ADVERTISING
applications requiring extra laser power in larger environments or outdoor situations where high ambient light levels, distance and projection size are determining factors.

PRO SYSTEM SPECIFICATION

3.5 Watt White RGB Laser.
Dimensions: L= 250mm x H=250mm x D=265mm

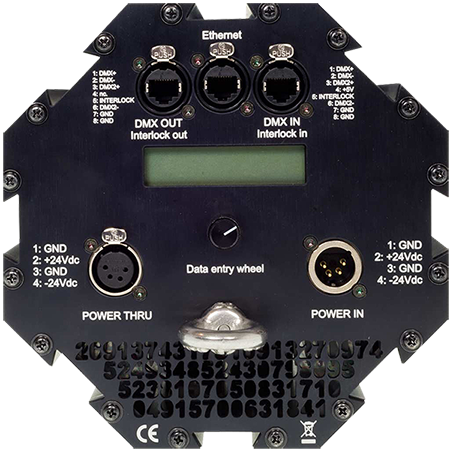

Built in functions I PC Control | DMX |

Laser Software Options:
See Pricelist for Further Details
ILP Lasermedia Latest Edition

Multimedia PC or Laptop

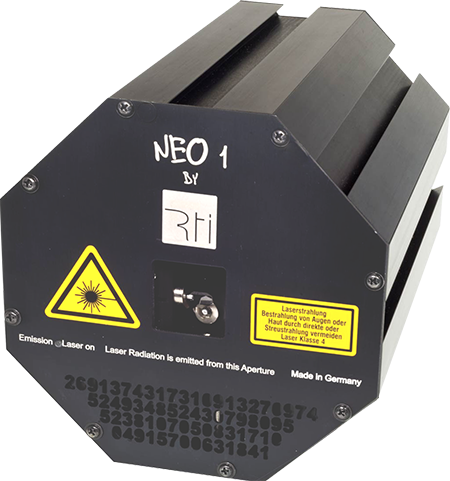

Precision " RTI NEO" Projector enclosure
Precision " RTI NEO" PSU enclosure
T-6210H incl. Rti RayScan driver: 60kpps@8° ILDA, max. 80° (@35kpps)
Electronics and Cabling

CLUB Configuration
Inclusive of 12 month Warranty Parts & Labor



SOFTWARE

Laser Software Options:
See Pricelist for Further Details

INSTALLATION

Front Surface Mirrors
3D Mirrors
FX Gratings
Electric Gauze Screens
Water Screens

LASER SPECIFICATIONS

RGB 3.5 Watt
Diode mw RED GREEN BLUE 2750 3000 6000
Wavelength nm 640 532 473
Beam Diameter mm 4.0mm
Divergence mrad 1.0<
Power Consumption 500 W
Operating temp 10-40

Operating Lifetime hrs 5000
